DIY Fume Extractor

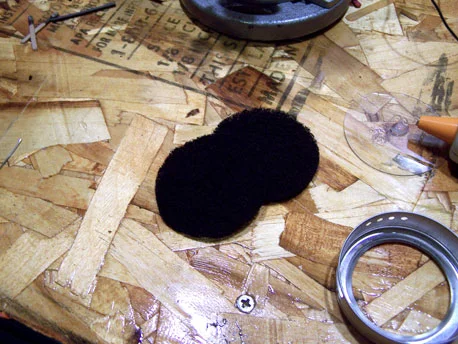

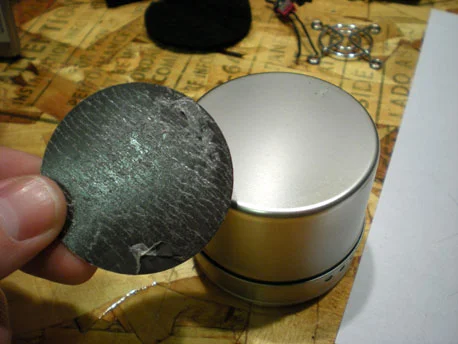

I was tired of breathing solder fumes so I decided to make myself a fume extractor – in its simplest form a fume extractor sucks the soldering fumes up and passes them through a filter, in this case I used and activated carbon filter.

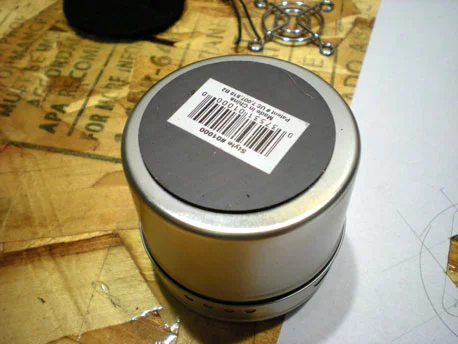

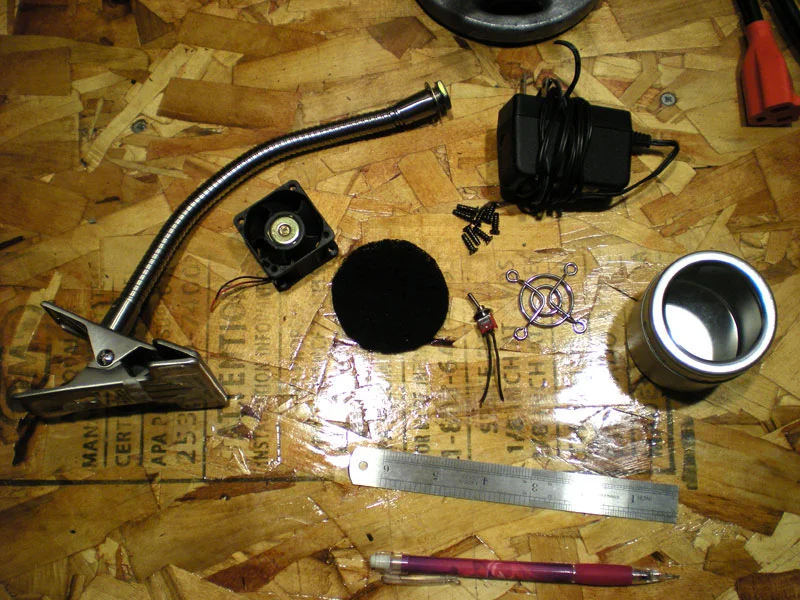

You can buy fume extractors from anywhere $30 to thousands but since I already had everything to make this (except the carbon filters and the tin) I decided to go the DIY route. The filters were $11 for a big roll (enough to cut a few dozen filters for this) and $3 for the tin.
